03697: bigrun: Missing gfx and terrible music

- As of 0.139u2, some drivers and options show "16-bit EEPROM set with 8-bit data". Check 4030.
- Haze is calling for mixing issues with *SINGLE* VDP games in toaplan2.c. Check 4044.

Viewing Issue Advanced Details [ Jump to Notes ]

[ View Source: cischeat.c ]

Category [?]

Severity [?]

Reproducibility

Date Submitted

Last Update

03697

Misc.

Minor

Always

2010-01-29 22:37

2010-02-19 13:27

Tester

M.A.S.H.

View Status

Public

Assigned To

Mamesick

Platform

MAME (Self-compiled)

Priority

normal

Resolution

Fixed

Windows XP (32-bit)

Status [?]

Resolved

Driver

cischeat.c

Projection

None

Version

0.136u2

ETA

None

Fixed in Version

0.136u4

Build

Normal

Summary

03697: bigrun: Missing gfx and terrible music

Description

Missing gfx and terrible music in Big Run since 0.131u1.
See attached screenshots from MAME 0.131 and 0.136u2.
WhatsNew:
- 0.131u1: MooglyGuy merged memory maps in the Cisco Heat driver.

The terrible music can be fixed by changing

drivers\cischeat.c lines 706/707 from

AM_RANGE(0x0a0000, 0x0a0001) AM_DEVREADWRITE8("oki1", okim6295_r, okim6295_w, 0x00ff)
AM_RANGE(0x0c0000, 0x0c0001) AM_DEVREADWRITE8("oki2", okim6295_r, okim6295_w, 0x00ff)

to

AM_RANGE(0x0a0000, 0x0a0003) AM_DEVREADWRITE8("oki1", okim6295_r, okim6295_w, 0x00ff)
AM_RANGE(0x0c0000, 0x0c0003) AM_DEVREADWRITE8("oki2", okim6295_r, okim6295_w, 0x00ff)

This was a typo by merging the bigrun_sound_map!
The problem in the bigrun_map did i not found. But it has since 0.131u1
unmapped program read/writes (error.log).

Steps To Reproduce

Additional Information

Flags

Regression Version

0.131u1

Affected Sets

bigrun

Old BugID

Attached Files

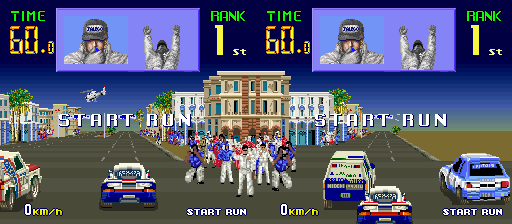

Big Run-0.136_0136u2.png (33,454 bytes) 2010-01-29 22:37

Relationships

Notes
(05599) Mamesick (Senior Tester) 2010-01-30 08:05 edited on: 2010-01-30 08:07	About the GFX: 230 AM_RANGE(0x084000, 0x087fff) AM_WRITEONLY // Linking with other units to: 230 AM_RANGE(0x084000, 0x087fff) AM_RAM // Linking with other units and: 626 AM_RANGE(0x040000, 0x047fff) AM_READWRITE(sharedram2_r, sharedram1_w) // Shared RAM (with Main CPU) to: 626 AM_RANGE(0x040000, 0x047fff) AM_READWRITE(sharedram2_r, sharedram2_w) // Shared RAM (with Main CPU) If MASH want to compile and test, he's welcome. As far I've seen, all looks ok now.

(05600) M.A.S.H. (Senior Tester) 2010-01-30 13:31	I have compiled and test Big Run and everthing is O.K. The bug is FIXED :) Thanks to Mamesick!
